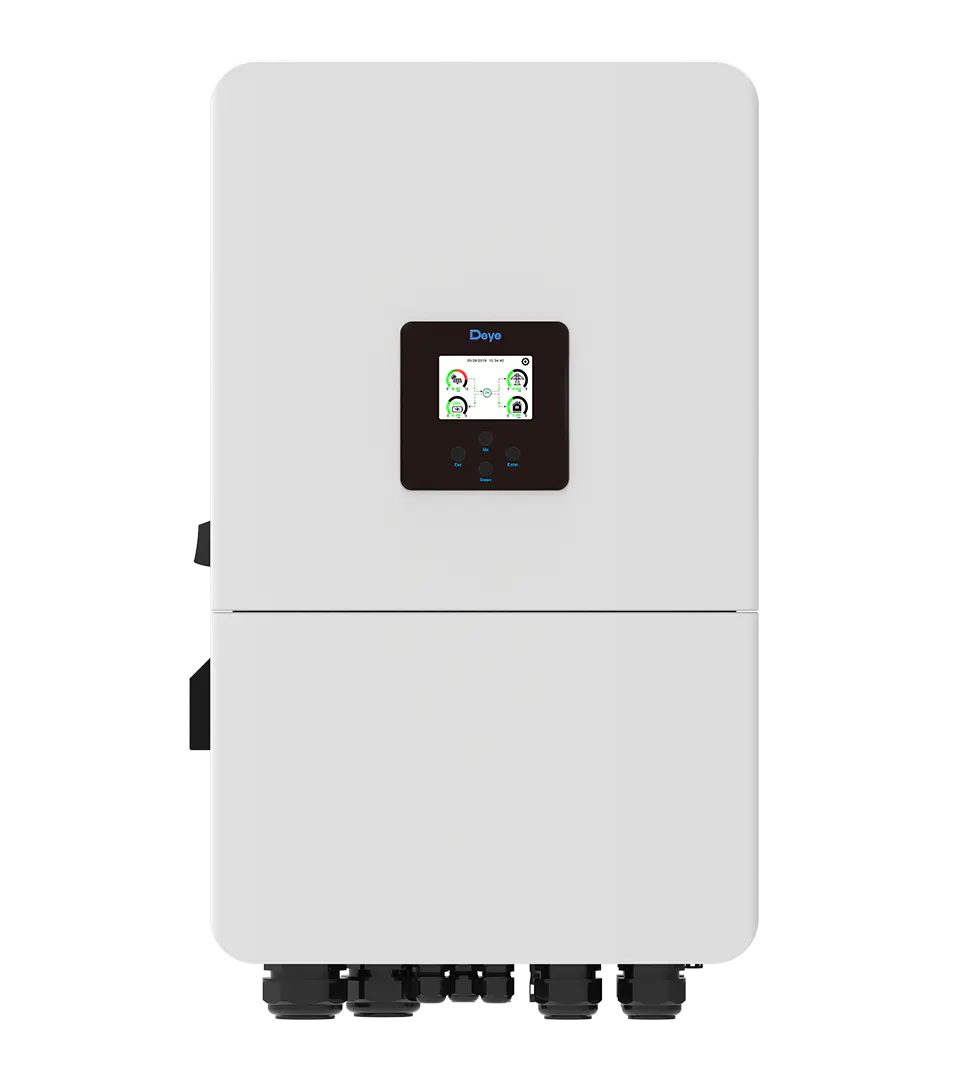

DEYE-SUN-16K-SG05LP3-EU-SM2

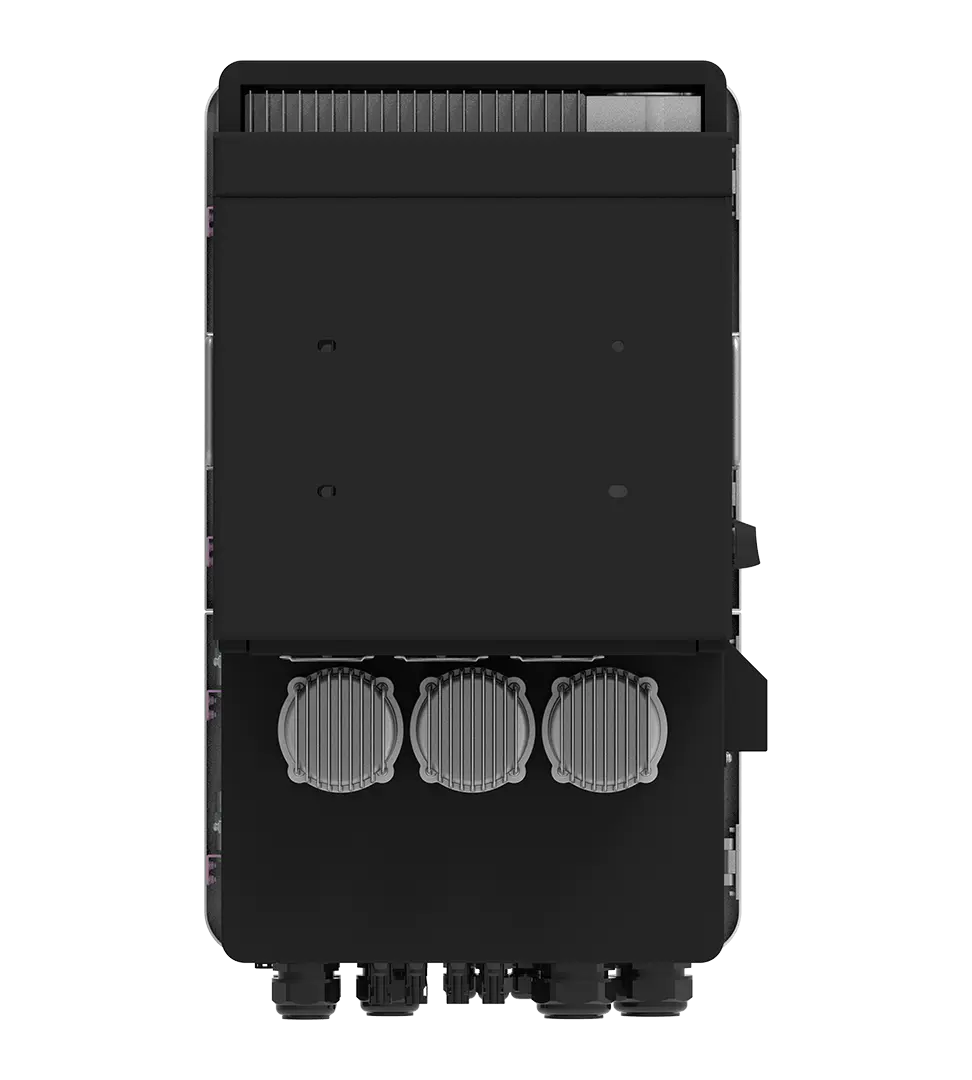

DEYE-SUN-16K-SG05LP3-EU-SM2 - Image 2

DEYE-SUN-16K-SG05LP3-EU-SM2

Key Features:

  • 100% Unbalanced Load Output: Perfect for Nigerian homes and businesses with single-phase and multi-phase power needs.

  • AC Coupling: Easily upgrade or retrofit your existing solar power system without replacing major components.

  • Scalable Design: Supports up to 10 units in parallel for both on-grid and off-grid operations, ideal for expanding power capacity.

  • Flexible Battery Options: Compatible with multiple lithium and lead-acid batteries connected in parallel to increase storage.

  • High Charging/Discharging Current: Maximum charge and discharge current up to 350A for fast energy storage and supply.

  • Diesel Generator Charging Support: Can store energy directly from diesel generators—perfect for Nigerian locations with unstable grid power.

  • 48V Low Voltage System: Safe and reliable low-voltage battery design with transformer isolation for extra protection.

  • Customizable Battery Charge/Discharge Time: Set up to 6 different time periods for battery charging and discharging to match Nigeria’s peak and off-peak electricity periods.



Download Datasheet
Download Manual

Add to quote
Category: Brand:

Description

Description

Battery Input Features

  1. Supported Battery Types: Lead-Acid and Lithium-Ion (widely used in Nigeria)
  2. Battery Voltage Range: 40V – 60V for flexible battery options
  3. Maximum Charging Current: Up to 350A (faster battery charging)
  4. Maximum Discharging Current: Up to 350A (supports heavy loads)
  5. Smart Battery Charging: Auto-adapts to Lithium BMS (Battery Management System)
  6. Battery Input: Single battery input design

Solar (PV) Input Features

  1. Maximum Solar Panel Power Input: Up to 40,000W (perfect for large solar setups)
  2. Maximum DC Input Power: Up to 32,000W
  3. DC Input Voltage Range: 160V – 800V
  4. MPPT Voltage Range: 160V – 650V (ideal for Nigeria’s solar conditions)
  5. Rated DC Voltage: 550V
  6. Maximum PV Input Current: 36A + 36A
  7. Short Circuit Current: 54A + 54A
  8. MPPT Trackers: 2 independent trackers for better solar efficiency

AC Input/Output Features

  1. Rated AC Output Power: From 14kW to 20kW (suitable for homes, offices & small factories)
  2. Maximum AC Apparent Power: Up to 22,000VA
  3. Rated AC Voltage: 220/380V, 230/400V (fits Nigeria’s power grid)
  4. Grid Frequency: 50Hz (Nigeria standard) adjustable between 45Hz – 55Hz
  5. Maximum AC Passthrough: 70A (handles generator or grid power)
  6. Off-grid Peak Power: Delivers double rated power for 10 seconds—ideal for high starting loads like water pumps and ACs
  7. Power Factor Range: 0.8 leading to 0.8 lagging
  8. Low Total Harmonic Distortion (THDi): Less than 3% for cleaner power

Efficiency

  1. Maximum Efficiency: 97.6%
  2. European Efficiency: 97%
  3. MPPT Efficiency: Over 99% for optimal solar harvesting

Protection Features

Comprehensive Safety Protections:
Reverse DC polarity, output overcurrent, thermal protection, overvoltage, short circuit, DC leakage monitoring, surge protection (Type II for DC & AC), ground fault protection, insulation monitoring, arc fault protection (optional) and more.

Additional information

inverter-size

16 kw
